MAX4823, MAX4822 Datasheet - Maxim Integrated Products

MAX4823 (MAX4822 - MAX4825) 8-Channel Relay Drivers

MAX4823 Features

* a 2.7Ω (typ) on-resistance and is guaranteed to sink 70mA (min) of load current. These devices consume less than 300µA (max) quiescent current and have 1µA output off-leakage current. A Zener-kickback-protection circuit significantly reduces recovery time in applications where switching speed is cri

MAX4822_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX4823, MAX4822. Please refer to the document for exact specifications by model.

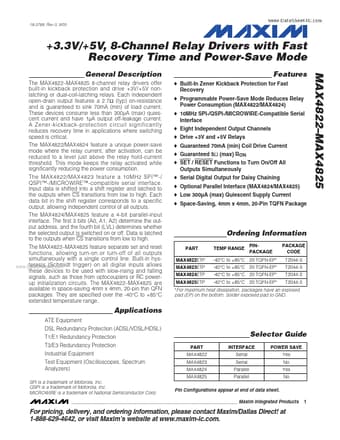

MAX4823 Datasheet Preview Page 2 MAX4823 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX4823, MAX4822

Manufacturer:

Maxim Integrated ↗ Products

File Size:

755.34 KB

Description:

(max4822 - max4825) 8-channel relay drivers.

Note:

This datasheet PDF includes multiple part numbers: MAX4823, MAX4822.
Please refer to the document for exact specifications by model.
