MAX480 Datasheet - Maxim

High-Precision / Low-Voltage / Micropower Op Amp

MAX480 Features

* o Single- or Dual-Supply Operation: +1.6V to +36V, ±0.8V to ±18V o True Single-Supply Operation: Input and Output Voltage Ranges Include Ground o 2.0µV/°C Max Offset Voltage Drift o 20µA Max Supply Current o 5mA Min Output Drive o 140µV Max Input Offset Voltage o 3nA Max Input Bias Current o 500V/mV

MAX480 General Description

The MAX480 is a precision micropower operational amplifier with flexible power-supply capability. Its guaranteed 140µV maximum offset voltage (25µV typ) is the lowest of any micropower op amp. Similarly, input bias current, input offset current, and drift specifications are within tight limits. Both.

MAX480 Datasheet (215.08 KB)

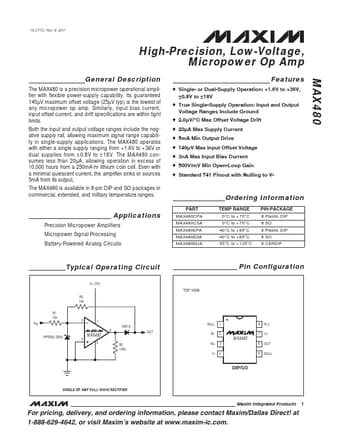

MAX480 Datasheet Preview — Preview of MAX480 PDF

Datasheet Details

Part number:

MAX480

Manufacturer:

Maxim

File Size:

215.08 KB

Description:

High-precision / low-voltage / micropower op amp.
