MAX4812 - High-Voltage Digital Pulsers

Product Overview

Maxim Integrated Products

📥 Download Datasheet

MAX4812 High-Voltage Digital Pulsers by Maxim Integrated Products - Datasheet Preview — Datasheet preview – MAX4812

Datasheet Details

Part number	MAX4812
Manufacturer	Maxim Integrated Products
File Size	251.38 KB
Description	High-Voltage Digital Pulsers
Datasheet	MAX4812 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX4812, MAX4810. Please refer to the document for exact specifications by model.

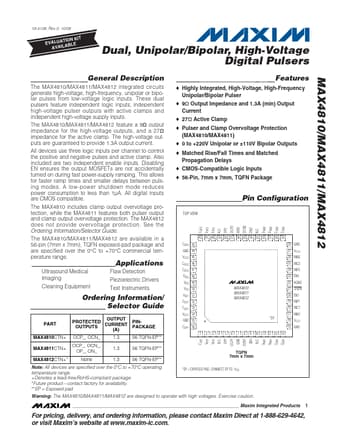

Additional preview pages of the MAX4812 datasheet.

Product details

Features

Highly Integrated, High-Voltage, High-Frequency Unipolar/Bipolar Pulser.
9Ω Output Impedance and 1.3A (min) Output Current.
27Ω Active Clamp.
Pulser and Clamp Overvoltage Protection (MAX4810/MAX4811).
0 to +220V Unipolar or ±110V Bipolar Outputs.
Matched Rise/Fall Times and Matched Propagation Delays.
CMOS-Compatible Logic Inputs.
56-Pin, 7mm x 7mm, TQFN Package MAX4810/MAX4811/MAX4812 The MAX4810/MAX4811/MAX4812 integrat.
