MAX4811, MAX4810 - High-Voltage Digital Pulsers

MAX4811 Description

19-4138; Rev 0; 10/08 KIT ATION EVALU LE B A IL A AV Dual, Unipolar/Bipolar, High-Voltage Digital Pulsers General .
Features. Highly Integrated, High-Voltage, High-Frequency Unipolar/Bipolar Pulser. 9Ω Output Impedance and 1.

MAX4811 Features

* Highly Integrated, High-Voltage, High-Frequency Unipolar/Bipolar Pulser
* 9Ω Output Impedance and 1.3A (min) Output Current
* 27Ω Active Clamp
* Pulser and Clamp Overvoltage Protection (MAX4810/MAX4811)
* 0 to +220V Unipolar or ±110V Bipolar Outputs

MAX4811 Applications

* Ultrasound Medical Imaging Cleaning Equipment Flaw Detection Piezoelectric Drivers Test Instruments Ordering Information/ Selector Guide PART MAX4810CTN+ MAX4811CTN+ MAX4812CTN+
* OUTPUT PROTECTED CURRENT OUTPUTS (A) OCP_, OCN_ OCP_, OCN_, OP_, ON_ None 1.3 1.3 1.3 PINPACKAGE 56 TQFN-EP

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4811, MAX4810. Please refer to the document for exact specifications by model.

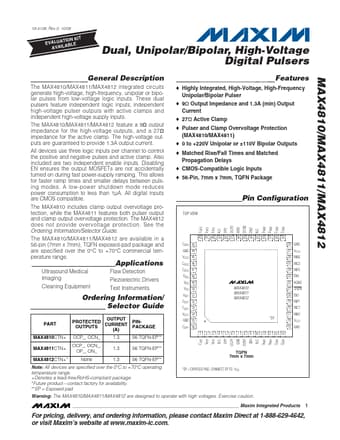

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4811, MAX4810
Manufacturer
Maxim Integrated ↗ Products
File Size
251.38 KB
Datasheet
MAX4810_MaximIntegratedProducts.pdf
Description
High-Voltage Digital Pulsers
Note
This datasheet PDF includes multiple part numbers: MAX4811, MAX4810.
Please refer to the document for exact specifications by model.
