MAX4810 - High-Voltage Digital Pulsers

MAX4810 Description

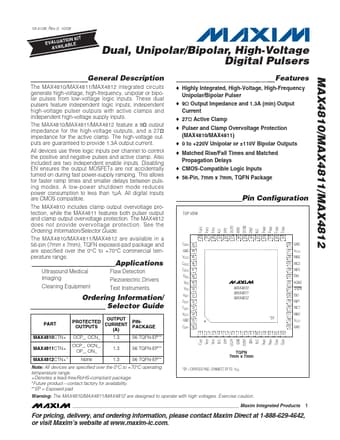

19-4138; Rev 0; 10/08 KIT ATION EVALU LE B A IL A AV Dual, Unipolar/Bipolar, High-Voltage Digital Pulsers General .
Features. Highly Integrated, High-Voltage, High-Frequency Unipolar/Bipolar Pulser. 9Ω Output Impedance and 1.

MAX4810 Features

* Highly Integrated, High-Voltage, High-Frequency Unipolar/Bipolar Pulser
* 9Ω Output Impedance and 1.3A (min) Output Current
* 27Ω Active Clamp
* Pulser and Clamp Overvoltage Protection (MAX4810/MAX4811)
* 0 to +220V Unipolar or ±110V Bipolar Outputs

MAX4810 Applications

* Ultrasound Medical Imaging Cleaning Equipment Flaw Detection Piezoelectric Drivers Test Instruments Ordering Information/ Selector Guide PART MAX4810CTN+ MAX4811CTN+ MAX4812CTN+
* OUTPUT PROTECTED CURRENT OUTPUTS (A) OCP_, OCN_ OCP_, OCN_, OP_, ON_ None 1.3 1.3 1.3 PINPACKAGE 56 TQFN-EP
