MAX4911 - Clickless Audio Switches

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX4911
Manufacturer	Maxim Integrated Products
File Size	695.92 KB
Description	Clickless Audio Switches
Datasheet	MAX4911 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX4911, MAX4910. Please refer to the document for exact specifications by model.

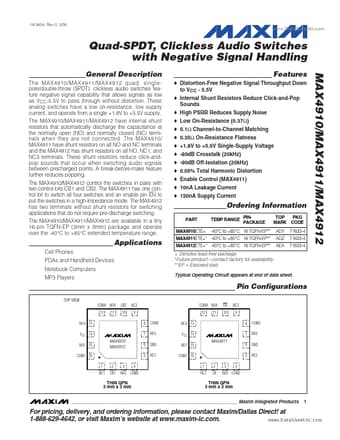

Additional preview pages of the MAX4911 datasheet.

Product details

Description

The MAX4910/MAX4911/MAX4912 quad, singlepole/double-throw (SPDT), clickless audio switches feature negative signal capability that allows signals as low as VCC-5.5V to pass through without distortion.

Features

Distortion-Free Negative Signal Throughput Down to VCC - 5.5V.
Internal Shunt Resistors Reduce Click-and-Pop Sounds.
High PSRR Reduces Supply Noise.
Low On-Resistance (0.37Ω).
0.1Ω Channel-to-Channel Matching.
0.35Ω On-Resistance Flatness.
+1.8V to +5.5V Single-Supply Voltage.
-80dB Crosstalk (20kHz).
-90dB Off-Isolation (20kHz).
0.05% Total Harmonic Distortion.
Enable Control (MAX4911).
