MAX5427, Linear-Taper Digital Potentiometers

www.DataSheet.co.kr 19-2462; Rev 2; 3/05 KIT ATION EVALU BLE A IL A V A One-Time Programmable, Linear-Taper Digital Potentiometers General Descripti.
Features. Wiper Position Stored After One-Time Fuse Programming. User-Defined Power-On Reset Position. 35ppm/°C End-to-End.

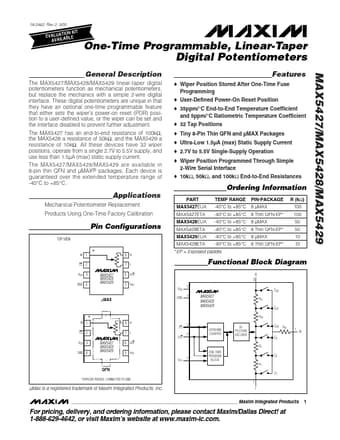

datasheet Preview Page 1 from Datasheet4u.com

MAX5427_MaximIntegratedProducts.pdf

MAX5427 Datasheet Preview — Preview of MAX5427 PDF

Datasheet Details

Part number:

MAX5427

Manufacturer:

Maxim Integrated ↗ Products

File Size:

270.35 KB

Description:

Linear-Taper Digital Potentiometers

Features

* Wiper Position Stored After One-Time Fuse Programming
* User-Defined Power-On Reset Position
* 35ppm/°C End-to-End Temperature Coefficient and 5ppm/°C Ratiometric Temperature Coefficient
* 32 Tap Positions
* Tiny 8-Pin Thin QFN and µMAX Packages
* Ul

Applications

* Mechanical Potentiometer Replacement Products Using One-Time Factory Calibration Pin Configurations TOP VIEW W CS VDD GND 1 2 3 4 MAX5427 MAX5428 MAX5429 8 7 6 5 H L U/D VPP
* EP = Exposed paddle. Functional Block Diagram H 8 VDD 3 4 S32 MAX5427 MAX5428 MAX5429 R31 µMAX GND S31 R30
