MAX5400 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23

Datasheet Summary

Description

The MAX5400/MAX5401 digital potentiometers offer 256-tap SOT-PoT™ digitally controlled variable resistors in tiny 8-pin SOT23 packages.

Each device functions as a mechanical potentiometer, consisting of a fixed resistor string with a digitally controlled wiper contact.

They operate from +2.7V to +5.

Features

  • MAX5400/MAX5401 Ordering Information PART MAX5400EKA-T MAX5401EKA-T TEMP. RANGE -40°C to +85°C -40°C to +85°C.

📥 Download Datasheet

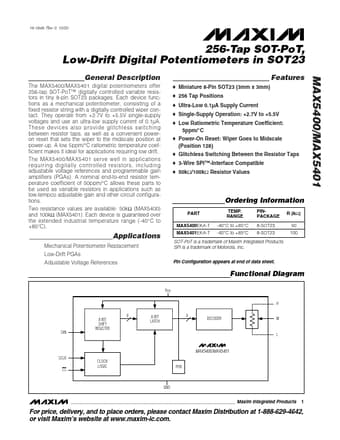

Datasheet preview – MAX5400

Datasheet Details

Part number MAX5400
Manufacturer Maxim
File Size 250.30 KB
Description 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23
Datasheet download datasheet MAX5400 Datasheet
Additional preview pages of the MAX5400 datasheet.

📁 Similar Datasheet

  • MAX5406 - Audio Processor (Maxim Integrated Products)
  • MAX5409 - Log Taper Digital Potentiometers (Maxim Integrated)
  • MAX5410 - Log Taper Digital Potentiometers (Maxim Integrated)
  • MAX5414 - Digital Potentiometers (Maxim Integrated)
  • MAX5417 - 256-Tap Nonvolatile I2C-Interface Digital Potentiometers (Maxim Integrated Products)
  • MAX5418 - 256-Tap Nonvolatile I2C-Interface Digital Potentiometers (Maxim Integrated Products)
  • MAX5419 - 256-Tap Nonvolatile I2C-Interface Digital Potentiometers (Maxim Integrated Products)
  • MAX5420 - Digitally Programmable Precision Voltage Divider (Maxim Integrated Products)
  • MAX5421 - Digitally Programmable Precision Voltage Divider (Maxim Integrated Products)
  • MAX5422 - Digital Potentiometers (Maxim Integrated Products)
Other Datasheets by Maxim
  • MAX5401 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23
  • MAX5402 - 256-Tap / PoT / Low-Drift / Digital Potentiometer
  • MAX5403 - Dual 256-Tap / Low-Drift / Digital Potentiometers
  • MAX5404 - Dual 256-Tap / Low-Drift / Digital Potentiometers
  • MAX5405 - Dual 256-Tap / Low-Drift / Digital Potentiometers
  • MAX5407 - 32-Tap Audio Logarithmic Taper Digital Potentiometer
  • MAX5408 - Log Taper Digital Potentiometers
  • MAX541 - +5V / Serial-Input / Voltage-Output / 16-Bit DACs

Full PDF Text Transcription

Click to expand full text
19-1848; Rev 0; 10/00 256-Tap SOT-PoT, Low-Drift Digital Potentiometers in SOT23 General Description The MAX5400/MAX5401 digital potentiometers offer 256-tap SOT-PoT™ digitally controlled variable resistors in tiny 8-pin SOT23 packages. Each device functions as a mechanical potentiometer, consisting of a fixed resistor string with a digitally controlled wiper contact. They operate from +2.7V to +5.5V single-supply voltages and use an ultra-low supply current of 0.1µA. These devices also provide glitchless switching between resistor taps, as well as a convenient poweron reset that sets the wiper to the midscale position at power-up. A low 5ppm/°C ratiometric temperature coefficient makes it ideal for applications requiring low drift.
