MAX5419 - 256-Tap Nonvolatile I2C-Interface Digital Potentiometers

This page provides the datasheet information for the MAX5419, a member of the MAX5417 256-Tap Nonvolatile I2C-Interface Digital Potentiometers family.

Datasheet Summary

Description

The MAX5417/MAX5418/MAX5419 nonvolatile, lineartaper, digital potentiometers perform the function of a mechanical potentiometer by replacing the mechanics with a simple 2-wire digital interface, allowing communication with multiple devices.

Features

  • an address input for a total of eight unique address combinations. The MAX5417/MAX5418/MAX5419 provide three nominal resistance values: 50k Ω (MAX5417), 100k Ω (MAX5418), or 200kΩ (MAX5419). The nominal resistor temperature coefficient is 35ppm/°C end-to-end, and only 5ppm/°C ratiometric. This makes the devices ideal for.

📥 Download Datasheet

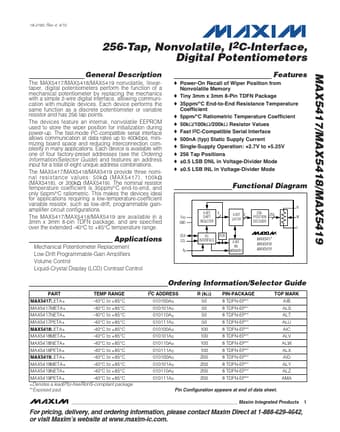

Datasheet preview – MAX5419

Datasheet Details

Part number MAX5419
Manufacturer Maxim Integrated Products
File Size 279.04 KB
Description 256-Tap Nonvolatile I2C-Interface Digital Potentiometers
Datasheet download datasheet MAX5419 Datasheet
Additional preview pages of the MAX5419 datasheet.

📁 Similar Datasheet

  • MAX541 - +5V / Serial-Input / Voltage-Output / 16-Bit DACs (Maxim)
  • MAX5410 - Log Taper Digital Potentiometers (Maxim Integrated)
  • MAX5411 - Log Taper Digital Potentiometers (Maxim)
  • MAX5413 - Digital Potentiometers (Maxim)
  • MAX5414 - Digital Potentiometers (Maxim Integrated)
  • MAX5415 - Dual / 256-Tap / Low-Drift / Digital Potentiometers (Maxim)
  • MAX5400 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23 (Maxim)
  • MAX5401 - 256-Tap SOT-PoT / Low-Drift Digital Potentiometers in SOT23 (Maxim)
  • MAX5402 - 256-Tap / PoT / Low-Drift / Digital Potentiometer (Maxim)
  • MAX5403 - Dual 256-Tap / Low-Drift / Digital Potentiometers (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX5417 - 256-Tap Nonvolatile I2C-Interface Digital Potentiometers
  • MAX5418 - 256-Tap Nonvolatile I2C-Interface Digital Potentiometers
  • MAX5406 - Audio Processor
  • MAX5420 - Digitally Programmable Precision Voltage Divider
  • MAX5421 - Digitally Programmable Precision Voltage Divider
  • MAX5422 - Digital Potentiometers
  • MAX5423 - Digital Potentiometers
  • MAX5424 - Digital Potentiometers

Full PDF Text Transcription

Click to expand full text
19-3185; Rev 3; 3/09 www.DataSheet4U.com 256-Tap, Nonvolatile, I2C-Interface, Digital Potentiometers General Description The MAX5417/MAX5418/MAX5419 nonvolatile, lineartaper, digital potentiometers perform the function of a mechanical potentiometer by replacing the mechanics with a simple 2-wire digital interface, allowing communication with multiple devices. Each device performs the same function as a discrete potentiometer or variable resistor and has 256 tap points. The devices feature an internal, nonvolatile EEPROM used to store the wiper position for initialization during power-up. The fast-mode I2C-compatible serial interface allows communication at data rates up to 400kbps, minimizing board space and reducing interconnection complexity in many applications.
