MAX541 - +5V / Serial-Input / Voltage-Output / 16-Bit DACs

MAX541 Description

19-1082; Rev 2; 12/99 +5V, Serial-Input, Voltage-Output, 16-Bit DACs General .
The MAX541/MAX542 are serial-input, voltage-output, 16-bit digital-to-analog converters (DACs) that operate from a single +5V supply.

MAX541 Features

* o Full 16-Bit Performance Without Adjustments MAX541/MAX542 Ordering Information PART MAX541ACPA MAX541BCPA MAX541CCPA MAX541ACSA MAX541BCSA MAX541CCSA TEMP. RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C PIN-PACKAGE 8 Plastic DIP 8 Plastic DIP 8 Plastic DIP 8

MAX541 Applications

* requiring isolation. A power-on reset circuit clears the DAC output to 0V (unipolar mode) when power is initially applied. The MAX541 is available in 8-pin plastic DIP and SO packages. The MAX542 is available in 14-pin plastic DIP and SO packages. o +5V Single-Supply Operation o Low Power: 1.5mW o 1

📥 Download Datasheet

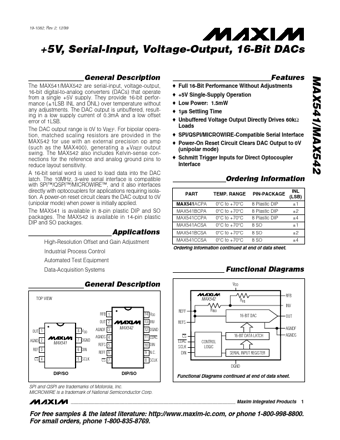

Preview of MAX541 PDF
