MAX5418, MAX5417 Datasheet - Maxim Integrated Products

MAX5418 256-Tap Nonvolatile I2C-Interface Digital Potentiometers

The MAX5417/MAX5418/MAX5419 nonvolatile, lineartaper, digital potentiometers perform the function of a mechanical potentiometer by replacing the mechanics with a simple 2-wire digital interface, allowing communication with multiple devices. Each device performs the same function as a discrete potent.

MAX5418 Features

* an address input for a total of eight unique address combinations. The MAX5417/MAX5418/MAX5419 provide three nominal resistance values: 50k Ω (MAX5417), 100k Ω (MAX5418), or 200kΩ (MAX5419). The nominal resistor temperature coefficient is 35ppm/°C end-to-end, and only 5ppm/°C ratiometric. This makes

MAX5417_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX5418, MAX5417. Please refer to the document for exact specifications by model.

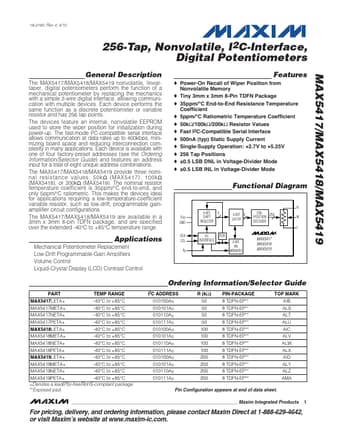

MAX5418 Datasheet Preview Page 2 MAX5418 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX5418, MAX5417

Manufacturer:

Maxim Integrated ↗ Products

File Size:

279.04 KB

Description:

256-tap nonvolatile i2c-interface digital potentiometers.

Note:

This datasheet PDF includes multiple part numbers: MAX5418, MAX5417.
Please refer to the document for exact specifications by model.
