MAX5433, MAX5432 - 32-Tap Nonvolatile I2C Linear Digital Potentiometers

Maxim Integrated Products

The MAX5433 by Maxim Integrated Products is a 32-Tap Nonvolatile I2C Linear Digital Potentiometers. Below is the official datasheet preview.

📥 Download Datasheet

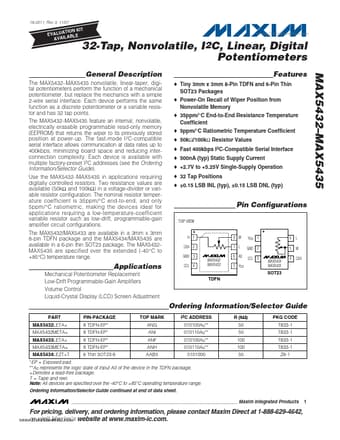

MAX5433 32-Tap Nonvolatile I2C Linear Digital Potentiometers by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX5433** 32-Tap Nonvolatile I2C Linear Digital Potentiometers datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX5433, MAX5432
Manufacturer	Maxim Integrated Products
File Size	355.30 KB
Description	32-Tap Nonvolatile I2C Linear Digital Potentiometers
Datasheet	MAX5432_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX5433, MAX5432. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX5433 datasheet.

MAX5433 Product details

Description

The MAX5432 MAX5435 nonvolatile, linear-taper, digital potentiometers perform the function of a mechanical potentiometer, but replace the mechanics with a simple 2-wire serial interface. MAX5435 feature an internal, nonvolatile, electrically erasable programmable read-only memory (EEPROM) that returns the wiper to its previously stored position at power-up.

Features

Tiny 3mm x 3mm 8-Pin TDFN and 6-Pin Thin SOT23 Packages.
Power-On Recall of Wiper Position from Nonvolatile Memory.
35ppm/°C End-to-End Resistance Temperature Coefficient.
5ppm/°C Ratiometric Temperature Coefficient.
50kΩ/100kΩ Resistor Values.
Fast 400kbps I2C-Compatible Serial Interface.
500nA (typ) Static Supply Current.
+2.7V to +5.25V Single-Supply Operation.
32 Tap Positions.
±0.15 LSB INL (typ), ±0.
