MAX6603 - Platinum RTD-to-Voltage Signal Conditioner

Datasheet Summary

Description

The MAX6603 dual-channel, platinum RTD-to-voltage signal conditioner excites and amplifies the signal from two external 200 Ω platinum-resistive temperature devices (Pt RTD) to achieve high-voltage, level-filtered signals for temperature measurements.

Features

  • a ±6°C (max) accuracy over the +400°C to +600°C temperature range. The MAX6603 has overvoltage protection up to +16V on RTD inputs, and ±5kV electrostatic discharge (ESD) protection at RTD input pins for reliable operation where RTD temperature-sensing probes are used. The MAX6603 monitors the RTD for faults and asserts the respective DG output low for fault conditions. The analog voltage outputs can be readily connected to a variety of microcontrollers. The MAX6603 is available in a small, 10-p.

📥 Download Datasheet

Datasheet preview – MAX6603

Datasheet Details

Part number MAX6603
Manufacturer Maxim Integrated Products
File Size 319.89 KB
Description Platinum RTD-to-Voltage Signal Conditioner
Datasheet download datasheet MAX6603 Datasheet

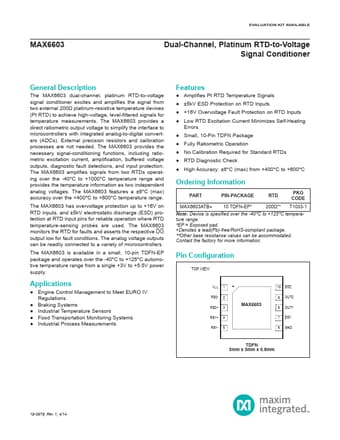

Additional preview pages of the MAX6603 datasheet.
