MAX6845 - (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors

This page provides the datasheet information for the MAX6845, a member of the MAX6841 (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors family.

Features

  • o Factory-Set Reset Threshold Voltages for Monitoring Supplies from 0.9V to 1.5V (MAX6841/MAX6842) o Adjustable Threshold RESET IN (MAX6843/MAX6844/MAX6845) o Low Power Consumption: 5.7µA (typ) o ±2.5% Reset Threshold Accuracy Over Temperature o Five Timeout Periods: 150µs (Voltage Detector Version), 1.5ms, 30ms, 210ms, and 1.68s o Available in Three Output Configurations Push-Pull RESET Push-Pull RESET Open-Drain RESET o Guaranteed Reset Valid to VCC = 0.55V (Active Low) o Manual Reset Input o.

📥 Download Datasheet

Datasheet preview – MAX6845

Datasheet Details

Part number MAX6845
Manufacturer Maxim Integrated Products
File Size 558.85 KB
Description (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors
Datasheet download datasheet MAX6845 Datasheet
Additional preview pages of the MAX6845 datasheet.

📁 Similar Datasheet

  • MAX684 - 3.3V-Input to Regulated 5V-Output Charge Pumps (Maxim)
  • MAX6840 - Ultra-Low-Voltage SC70 Voltage Detectors and uP Reset Circuits (Maxim Integrated)
  • MAX6846 - Low-Power / Adjustable Battery Monitors (Maxim)
  • MAX6847 - Low-Power / Adjustable Battery Monitors (Maxim)
  • MAX6848 - Low-Power / Adjustable Battery Monitors (Maxim)
  • MAX6849 - Low-Power / Adjustable Battery Monitors (Maxim)
  • MAX680 - +5V to 10V Voltage Converters (Maxim)
  • MAX6800 - 3-Pin / Low-Power uP Reset Circuits (Maxim)
  • MAX6801 - Low-Power uP Reset Circuits (Maxim)
  • MAX6802 - Low-Power uP Reset Circuits (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX6841 - (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors
  • MAX6842 - (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors
  • MAX6843 - (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors
  • MAX6844 - (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors
  • MAX6870 - EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors
  • MAX6871 - EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors
  • MAX6877 - Dual-/Triple-Voltage Power-Supply Trackers/Sequencers/Supervisors
  • MAX6878 - Dual-/Triple-Voltage Power-Supply Trackers/Sequencers/Supervisors

Full PDF Text Transcription

Click to expand full text

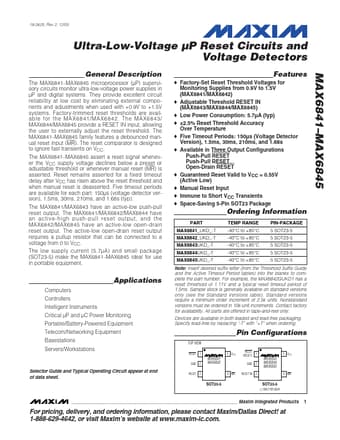

19-2625; Rev 1; 2/03 www.DataSheet4U.com Ultra-Low-Voltage µP Reset Circuits and Voltage Detectors General Description Features o Factory-Set Reset Threshold Voltages for Monitoring Supplies from 0.9V to 1.5V (MAX6841/MAX6842) o Adjustable Threshold RESET IN (MAX6843/MAX6844/MAX6845) o Low Power Consumption: 5.7µA (typ) o ±2.5% Reset Threshold Accuracy Over Temperature o Five Timeout Periods: 150µs (Voltage Detector Version), 1.5ms, 30ms, 210ms, and 1.68s o Available in Three Output Configurations Push-Pull RESET Push-Pull RESET Open-Drain RESET o Guaranteed Reset Valid to VCC = 0.
