MAX6871 - EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors

This page provides the datasheet information for the MAX6871, a member of the MAX6870 EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors family.

Description

The MAX6870/MAX6871 EEPROM-configurable, multivoltage supply sequencers/supervisors monitor several voltage detector inputs, two auxiliary inputs, and four general-purpose logic inputs.

The MAX6870/MAX6871 feature programmable outputs for highly configurable power-supply sequencing applications.

Features

  • six voltage detector inputs and eight programmable outputs, while the MAX6871 features four voltage detector inputs and five programmable outputs. Manual reset and margin disable inputs offer additional flexibility. All voltage detectors offer two configurable thresholds for undervoltage/overvoltage or dual undervoltage detection. One high voltage input (IN1) provides detector threshold voltages from +2.5V to +13.2V in 50mV increments, or from +1.25V to +7.625V in 25mV increments. A bipolar inpu.

📥 Download Datasheet

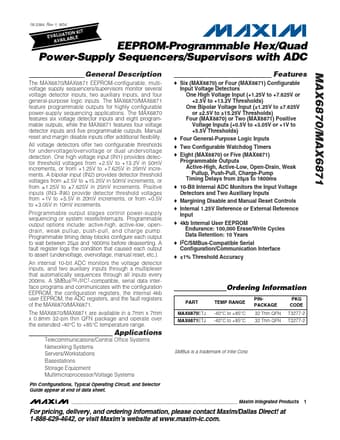

Datasheet preview – MAX6871

Datasheet Details

Part number MAX6871
Manufacturer Maxim Integrated Products
File Size 668.21 KB
Description EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors
Datasheet download datasheet MAX6871 Datasheet
