MAX7452, MAX7450 - Video-Signal Conditioners

Maxim Integrated Products

Datasheet Details

Part number	MAX7452, MAX7450
Manufacturer	Maxim Integrated ↗ Products
File Size	279.55 KB
Description	Video-Signal Conditioners
Datasheet	MAX7450_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX7452, MAX7450. Please refer to the document for exact specifications by model.

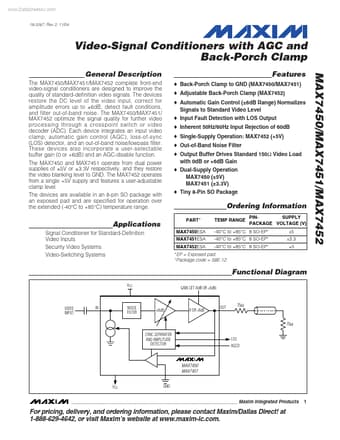

The MAX7450/MAX7451/MAX7452 complete front-end video-signal conditioners are designed to improve the quality of standard-definition video signals.

a user-adjustable clamp level. The devices are available in an 8-pin SO package with an exposed pad and are specified for operation over the extended (-40°C to +85°C) temperature range. Features.
Back-Porch Clamp to GND (MAX7450/MAX7451).
Adjustable Back-Porch Clamp (MAX7452).
Automatic Gain Control (±6dB Range) Normalizes Signals to Standard Video Level.
Input Fault Detection with LOS Output.
Inherent 50Hz/60Hz Input Rejection of 60dB.
Sing.
