MAX801L, 8-Pin uP Supervisory Circuits

19-1086; Rev 1; 11/05 MAX801L/M/N, MAX808L/M/N 8-Pin µP Supervisory Circuits with ±1.5% Reset Accuracy _______________General .
The MAX801/MAX808 microprocessor (µP) supervisory circuits monitor and control the activities of +5V µPs by providing backup-battery switchover, low-l.

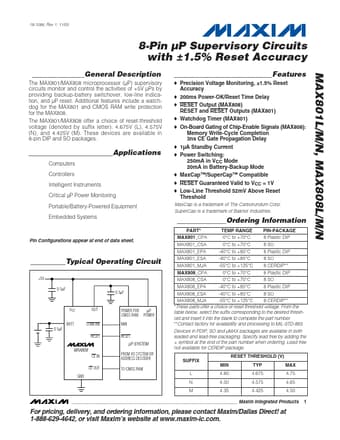

datasheet Preview Page 1 from Datasheet4u.com

MAX801L_MaximIntegratedProducts.pdf

MAX801L Datasheet Preview — Preview of MAX801L PDF

Datasheet Details

Part number:

MAX801L

Manufacturer:

Maxim Integrated ↗ Products

File Size:

137.32 KB

Description:

8-Pin uP Supervisory Circuits

Features

* include a watchdog for the MAX801 and CMOS RAM write protection for the MAX808. The MAX801/MAX808 offer a choice of reset-threshold voltage (denoted by suffix letter): 4.675V (L), 4.575V (N), and 4.425V (M). These devices are available in 8-pin DIP and SO packages. ________________________Applicatio

Applications

* Computers Controllers Intelligent Instruments Critical µP Power Monitoring Portable/Battery-Powered Equipment Embedded Systems Pin Configurations appear at end of data sheet. __________Typical Operating Circuit +5V 0.1μF 0.1μF VCC OUT BATT 0.1μF LOWLINE RESET MAX808 CE IN CE OUT GND POWER F
