MAX802M

Microprocessor Supervisory Circuits

MAX802M Features

* Precision Supply Voltage Monitor: 4.65V for MAX690A/MAX802L/MAX805L 4.40V for MAX692A/MAX802M

* Reset Time Delay: 200ms

* Watchdog Timer: 1.6s Timeout

* Battery-Backup Power Switching

* 200μA Quiescent Supply Current

* 50nA Quiescent Supply

MAX802M General Description

The MAX690A/MAX692A/MAX802L/MAX802M/MAX805L reduce the complexity and number of components required for power-supply monitoring and batterycontrol functions in microprocessor (μP) systems. They significantly improve system reliability and accuracy compared to separate ICs or discrete components. The.

MAX802M Datasheet (436.60 KB)

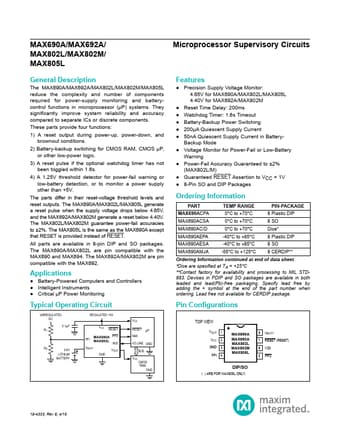

Preview of MAX802M PDF

Datasheet Details

Part number:

MAX802M

Manufacturer:

Maxim Integrated ↗ Products

File Size:

436.60 KB

Description:

Microprocessor supervisory circuits.
