MAX8510 Ultra-Low-Noise High PSRR Low-Dropout 120mA Linear Regulators

The MAX8510/MAX8511/MAX8512 ultra-low-noise, lowdropout (LDO) linear regulators are designed to deliver up to 120mA continuous output current. These regulators achieve a low 120mV dropout for 120mA load current. The MAX8510 uses an advanced architecture to achieve ultra-low output voltage noise of 1.

MAX8510 Features

* o Space-Saving SC70 and TDFN (2mm x 2mm) Packages o 11µVRMS Output Noise at 100Hz to 100kHz Bandwidth (MAX8510) o 78dB PSRR at 1kHz (MAX8510) o 120mV Dropout at 120mA Load o Stable with 1µF Ceramic Capacitor for Any Load o Guaranteed 120mA Output o Only Need Input and Output Capacitors (MAX8511) o O

MAX8511_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX8510, MAX8511. Please refer to the document for exact specifications by model.

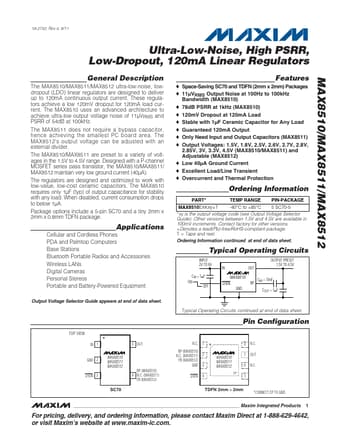

MAX8510 Datasheet Preview Page 2 MAX8510 Datasheet Preview Page 3
