MAX8505

Step-Down Regulator

MAX8505 Features

* 1% accurate output over load, line, and temperature variations. Adjustable soft-start is achieved with an external capacitor. During the soft-start period, the voltage-regulation loop is active. This limits the voltage dip when the active devices, such as microprocessors or ASICs connected to the MA

MAX8505 General Description

The MAX8505 step-down regulator operates from a 2.6V to 5.5V input and generates an adjustable output voltage from 0.8V to 0.85  VIN at up to 3A. With a 2.6V to 5.5V bias supply, the input voltage can be as low as 2.25V. The MAX8505 integrates power MOSFETs and operates at 1MHz/500kHz switching f.

MAX8505 Datasheet (210.52 KB)

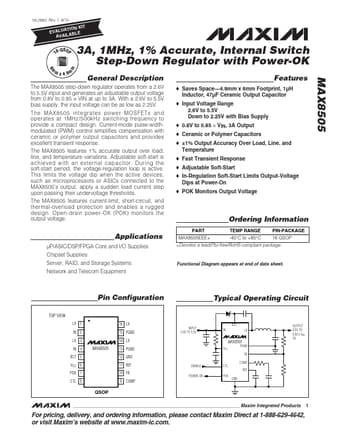

Preview of MAX8505 PDF

Datasheet Details

Part number:

MAX8505

Manufacturer:

Maxim Integrated ↗

File Size:

210.52 KB

Description:

Step-down regulator.
MAX8505 6m 19-2992; Rev 1; 9/10 EVAALVUAAILTAIOBNLEKIT 16-QSOP 3A, 1MHz, 1% Accurate, Internal Switch Step-Down Regulator with Power-OK m m x 4.9m.
