MAX9270 - Gigabit Multimedia Deserializer

Datasheet Summary

Description

The MAX9270 deserializer uses Maxim’s gigabit multimedia serial link (GMSL) technology.

The device functions the same as the MAX9260 deserializer without an output enable (ENABLE) pin.

Outputs are enabled or disabled by a register bit.

Features

  • S Pairs with Any GMSL Serializer S 2.5Gbps Payload Rate, AC-Coupled Serial Link MAX9270 with 8b/10b Line Coding S 24-Bit or 32-Bit Programmable Parallel Output Bus Supports Up to XGA (1280 x 768) or Dual-View WVGA (2 x 854 x 480) Panels with 18-Bit or 24-Bit Color 78MHz (32-Bit Bus) Parallel Data Rate 104MHz/78MHz Maximum Pixel Clock S 8.33MHz to 104MHz (24-Bit Bus) or 6.25MHz to S Support Two/Three 10-Bit Camera Links at S 4-Bit to 32-Bit Word Length, 8kHz to 192kHz I2S Audio Channe.

📥 Download Datasheet

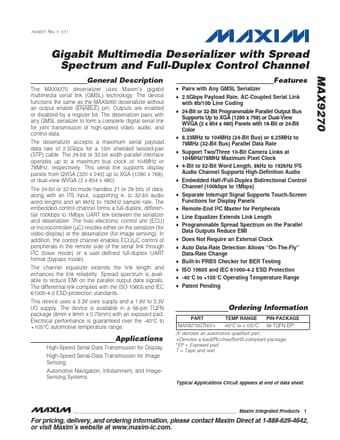

Datasheet preview – MAX9270

Datasheet Details

Part number MAX9270
Manufacturer Maxim Integrated Products
File Size 2.17 MB
Description Gigabit Multimedia Deserializer
Datasheet download datasheet MAX9270 Datasheet
Additional preview pages of the MAX9270 datasheet.

📁 Similar Datasheet

  • MAX9271 - 16-Bit GMSL Serializer (Maxim Integrated)
  • MAX9272 - 28-Bit GMSL Deserializer (Maxim Integrated)
  • MAX9272A - 28-Bit GMSL Deserializer (Maxim Integrated)
  • MAX9273 - 22-Bit GMSL Serializer (Maxim Integrated)
  • MAX9275 - 3.12Gbps GMSL Serializers (Maxim Integrated)
  • MAX9278 - 3.12Gbps GMSL Deserializers (Maxim Integrated)
  • MAX9279 - 3.12Gbps GMSL Serializers (Maxim Integrated)
  • MAX920 - Beyond-the-Rails Comparators (Maxim)
  • MAX9209 - Programmable DC-Balanced 21-Bit Serializers (Maxim Integrated)
  • MAX921 - Ultra Low-Power / Single/Dual-Supply Comparators (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX9276 - 3.12Gbps GMSL Deserializers
  • MAX9277 - 3.12Gbps GMSL Serializers
  • MAX9201 - Low-Power Voltage Comparators
  • MAX9202 - Low-Power Voltage Comparators
  • MAX9203 - Low-Power Voltage Comparators
  • MAX9205 - 10-Bit Bus LVDS Serializers
  • MAX9206 - 10-Bit Bus LVDS Deserializers
  • MAX9207 - 10-Bit Bus LVDS Serializers

Full PDF Text Transcription

Click to expand full text
19-5657; Rev 1; 1/11 Gigabit Multimedia Deserializer with Spread Spectrum and Full-Duplex Control Channel General Description The MAX9270 deserializer uses Maxim’s gigabit multimedia serial link (GMSL) technology. The device functions the same as the MAX9260 deserializer without an output enable (ENABLE) pin. Outputs are enabled or disabled by a register bit. The deserializer pairs with any GMSL serializer to form a complete digital serial link for joint transmission of high-speed video, audio, and control data. The deserializer accepts a maximum serial payload data rate of 2.5Gbps for a 15m shielded twisted-pair (STP) cable. The 24-bit or 32-bit width parallel interface operates up to a maximum bus clock of 104MHz or 78MHz, respectively.
