MAX9281

3.12Gbps GMSL Serializers

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Maxim Integrated Products MAX9281GTM-V-T IC SERIALIZER 3.12GBPS 48TQFN DigiKey 2500 250 units
$26.08

MAX9281 Datasheet (1.76 MB)

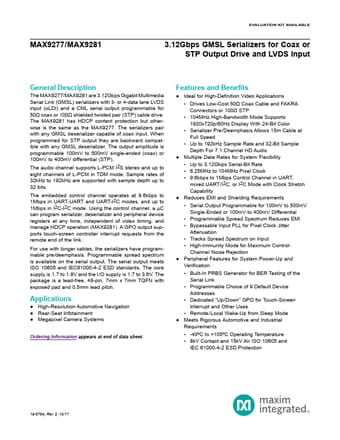

Preview of MAX9281 PDF Datasheet

Datasheet Details

Part number:

MAX9281

Manufacturer:

Maxim Integrated ↗ Products

File Size:

1.76 MB

Description:

3.12gbps gmsl serializers

MAX9281 Features

* Ideal for High-Definition Video Applications

* Drives Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP

* 104MHz High-Bandwidth Mode Supports 1920x720p/60Hz Display With 24-Bit Color

* Serializer Pre/Deemphasis Allows 15m Cable at Full Speed

* Up

MAX9281 General Description

The MAX9277/MAX9281 are 3.12Gbps Gigabit Multimedia Serial Link (GMSL) serializers with 3- or 4-data lane LVDS input (oLDI) and a CML serial output programmable for 50Ω coax or 100Ω shielded twisted pair (STP) cable drive. The MAX9281 has HDCP content protection but otherwise is the same as the MAX9.
