MAX9286 Datasheet - Maxim Integrated

Quad 1.5Gbps GMSL Deserializer

MAX9286 Features

* Ideal for Multicamera Stream Applications

* Works with Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP

* Data from Image Sensors Are Synchronized to the Same Pixel

* Automatic Internal/External Generation of Camera Sync

* Equalization Allows 15m Le

MAX9286 General Description

The MAX9286 Gigabit multimedia serial link (GMSL) deserializer receives data from up to four GMSL serializers over 50Ω coax or 100Ω shielded twisted-pair (STP) cables and output data on four CSI-2 lanes. Each serial link has an embedded control channel operating from 9.6kbps to 1Mbps in UART-to-UART.

MAX9286 Datasheet (4.45 MB)

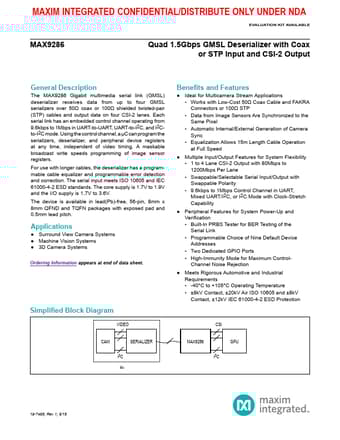

MAX9286 Datasheet Preview — Preview of MAX9286 PDF

Datasheet Details

Part number:

MAX9286

Manufacturer:

Maxim Integrated ↗

File Size:

4.45 MB

Description:

Quad 1.5gbps gmsl deserializer.
MAXIM INTEGRATED CONFIDENTIAL/DISTRIBUTE ONLY UNDER NDA EVALUATION KIT AVAILABLE MAX9286 Quad 1.5Gbps GMSL Deserializer with Coax or STP Input and C.
