MAX9550 High-Current VCOM Drive Buffers

The MAX9550/MAX9551/MAX9552 provide a VCOM source for TFT LCDs. The MAX9550/MAX9551/ MAX9552 source and sink a large current to quickly restore the VCOM voltage, making it ideal for TFT LCDs. The output settles to within 0.1% in less than 2µs. In addition, the MAX9550/MAX9551/MAX9552 directly drive .

MAX9550 Features

* MAX9550/MAX9551/MAX9552 Ordering Information PART MAX9550EZK+T MAX9550EUA+

* MAX9551EUA+

* MAX9552EUD+

* AMPS PIN-PACKAGE 1 1 2 4 5 Thin SOT23-5 8 µMAX-EP

* 8 µMAX-EP

* 14 TSSOP-EP

* PKG CODE Z5-1 U8E-2 U8E-2 U14E-3 TOP MARK ADSG AABA

* Applicati

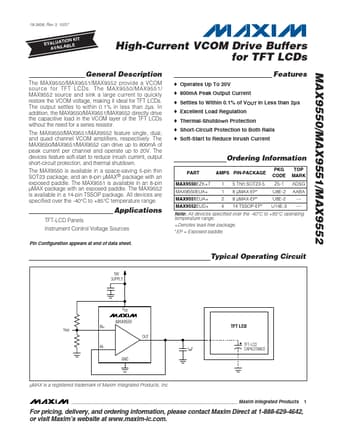

MAX9550_MaximIntegratedProducts.pdf
