MAXQ3100 - Mixed-Signal Microcontroller

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAXQ3100
Manufacturer	Maxim Integrated Products
File Size	383.86 KB
Description	Mixed-Signal Microcontroller
Datasheet	MAXQ3100 Datasheet

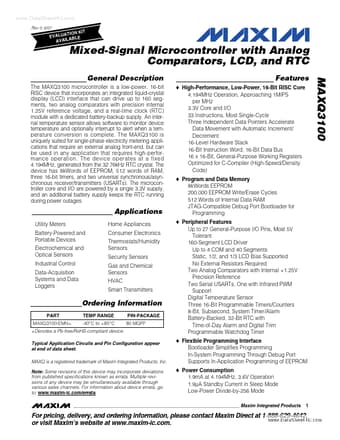

Additional preview pages of the MAXQ3100 datasheet.

Product details

Description

The MAXQ3100 microcontroller is a low-power, 16-bit RISC device that incorporates an integrated liquid-crystal display (LCD) interface that can drive up to 160 segments, two analog comparators with precision internal 1.25V reference voltage, and a real-time clock (RTC) module with a dedicated battery-backup supply.

Features

High-Performance, Low-Power, 16-Bit RISC Core 4.194MHz Operation, Approaching 1MIPS per MHz 3.3V Core and I/O 33 Instructions, Most Single-Cycle Three Independent Data Pointers Accelerate Data Movement with Automatic Increment/ Decrement 16-Level Hardware Stack 16-Bit Instruction Word, 16-Bit Data Bus 16 x 16-Bit, General-Purpose Working Registers Optimized for C-Compiler (High-Speed/Density Code).
Program and Data Memory 8kWords EEPROM 200,000 EEPROM Write/Erase Cycles 512 Wo.
