MAXQ3180 - Polyphase AFE

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAXQ3180
Manufacturer	Maxim Integrated Products
File Size	601.96 KB
Description	Polyphase AFE
Datasheet	MAXQ3180 Datasheet

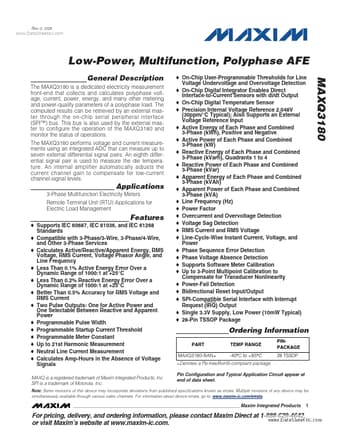

Additional preview pages of the MAXQ3180 datasheet.

Product details

Description

The MAXQ3180 is a dedicated electricity measurement front-end that collects and calculates polyphase voltage, current, power, energy, and many other metering and power-quality parameters of a polyphase load.

Features

Supports IEC 60687, IEC 61036, and IEC 61268 Standards.
Compatible with 3-Phase/3-Wire, 3-Phase/4-Wire, and Other 3-Phase Services.
Calculates Active/Reactive/Apparent Energy, RMS Voltage, RMS Current, Voltage Phasor Angle, and Line Frequency.
Less Than 0.1% Active Energy Error Over a Dynamic Range of 1000:1 at +25°C.
Less Than 0.2% Reactive Energy Error Over a Dynamic Range of 1000:1 at +25°C.
Better Than 0.5% Accuracy for RMS Voltage and R.
