DS1314 - 3V Nonvolatile Controller

Maxim Integrated

The DS1314 by Maxim Integrated is a 3V Nonvolatile Controller. Below is the official datasheet preview.

📥 Download Datasheet

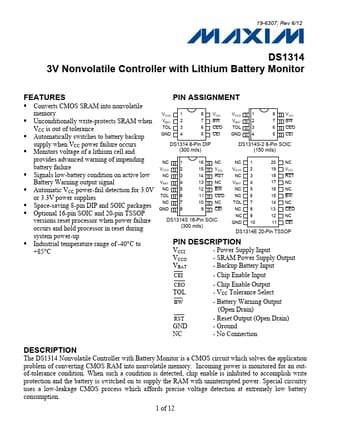

DS1314 3V Nonvolatile Controller by Maxim Integrated - Datasheet Preview — Official preview page of the **DS1314** 3V Nonvolatile Controller datasheet (Maxim Integrated).

Datasheet Details

Part number	DS1314
Manufacturer	Maxim Integrated
File Size	484.85 KB
Description	3V Nonvolatile Controller
Datasheet	DS1314-MaximIntegrated.pdf
Additional preview pages of the DS1314 datasheet.

DS1314 Product details

Description

VCCI VCCO VBAT - Power Supply Input - SRAM Power Supply Output - Backup Battery Input CEI - Chip Enable Input CEO TOL BW - Chip Enable Output - VCC Tolerance Select - Battery Warning Output (Open Drain) RST GND NC - Reset Output (Open Drain) - Ground - No Connection DESCRIPTION The DS1314 Nonvolatile Controller with Battery Monitor is a CMOS circuit which solves the application problem of converting CMOS RAM into nonvolatile memory.Incoming power is monitored for an outof-tolerance cond

Features

Converts CMOS SRAM into nonvolatile memory.
Unconditionally write-protects SRAM when VCC is out of tolerance.
Automatically switches to battery backup supply when VCC power failure occurs.
Monitors voltage of a lithium cell and provides advanced warning of impending battery failure.
Signals low-battery condition on active low Battery Warning output signal.
Automatic VCC power-fail detection for 3.0V or 3.3V power supplies.
Space-saving 8-pin DIP and SOIC packa.
