DS87C520

EPROM/ROM High-Speed Microcontrollers

DS87C520 Features

* 80C52 Compatible 8051 Pin- and Instruction-Set Compatible Four 8-Bit I/O Ports Three 16-Bit Timer/Counters 256 Bytes Scratchpad RAM

* Large On-Chip Memory 16kB Program Memory 1kB Extra On-Chip SRAM for MOVX

* ROMSIZE Feature Selects Internal ROM Size from 0 to 16kB Allows Access to Ent

DS87C520 Datasheet (721.96 KB)

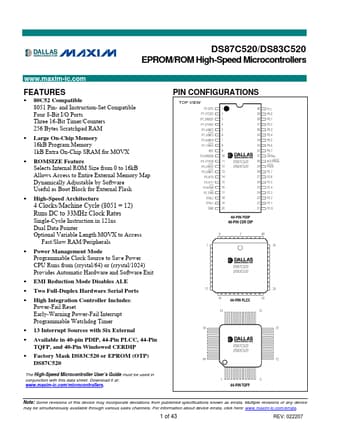

Preview of DS87C520 PDF

Datasheet Details

Part number:

DS87C520

Manufacturer:

Maxim Integrated ↗

File Size:

721.96 KB

Description:

Eprom/rom high-speed microcontrollers.
