DS87C550

EPROM High-Speed Microcontroller

DS87C550 Features

* 87C52 Compatible - 8051 pin and instruction set compatible - Three 16-bit timer/counters - 256 bytes scratchpad RAM

* On-Chip Memory - 8kB EPROM (OTP & Windowed Packages) - 1kB extra on-chip SRAM for MOVX access

* On-Chip Analog-to-Digital Converter - Eight channels of analog input, 10

DS87C550 Datasheet (649.83 KB)

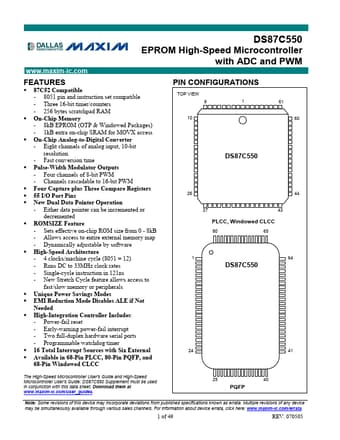

Preview of DS87C550 PDF

Datasheet Details

Part number:

DS87C550

Manufacturer:

Maxim Integrated ↗

File Size:

649.83 KB

Description:

Eprom high-speed microcontroller.
