MAX14504 - Dual SPDT Negative Rail Analog Switches

Description

The MAX14504/MAX14505/MAX14505A/MAX14506 dual single-pole/double-throw (SPDT) audio switches feature negative signal capability that allows signals from -VCC to +VCC to pass without distortion.

They feature high continuous current ratings of 550mA (continuous) and 850mA (pulsed).

Features

  • o Distortion-Free Negative Signal Throughput from -VCC to +VCC o Internal Shunt Switches Reduce Click/Pop (MAX14505/MAX14505A) o Low On-Resistance 0.36Ω (typ) o 1mΩ (typ) On-Resistance Flatness o COM High Impedance for EN = High o Low 0.2µA (max) Shutdown Current (MAX14505A/MAX14506) o +2.3V to +5.5V Single-Supply Voltage o Small, 1.56mm x 2.14mm, 12-Bump WLP Package Pin Configuration TOP VIEW (BUMPS ON BOTTOM) 1 + NO2 A COM2 B NC2 C MAX14504/ MAX14505/ MAX14505A/ MAX14506 2 3 NEG VCC.

📥 Download Datasheet

Datasheet preview – MAX14504

📁 Similar Datasheet

  • MAX1450 - 1%-Accurate Signal Conditioner (Maxim)
  • MAX14500 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX14501 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX14503 - Hi-Speed USB-to-SD Card Readers (Maxim Integrated Products)
  • MAX145 - Serial 12-Bit ADCs (Maxim)
  • MAX14514 - Dual Electroluminescent Lamp Driver (Maxim Integrated Products)
  • MAX14515 - He Smallest Liquid Lens Driver (Maxim Integrated Products)
  • MAX1452 - Low-Cost Precision Sensor Signal Conditioner (Maxim)
  • MAX14521E - High-Voltage EL Lamp Driver (Maxim Integrated Products)
  • MAX14523A - Adjustable Current-Limit Switches (Maxim Integrated Products)
Other Datasheets by Maxim Integrated
  • MAX14502 - Hi-Speed USB-to-SD Card Readers
  • MAX14505 - Dual SPDT Negative Rail Analog Switches
  • MAX14505A - Dual SPDT Negative Rail Analog Switches
  • MAX14506 - Dual SPDT Negative Rail Analog Switches
  • MAX14575A - 250mA to 2.5A Adjustable Current-Limit Switches
  • MAX14575AL - 250mA to 2.5A Adjustable Current-Limit Switches
  • MAX14575B - 250mA to 2.5A Adjustable Current-Limit Switches
  • MAX14575C - 250mA to 2.5A Adjustable Current-Limit Switches

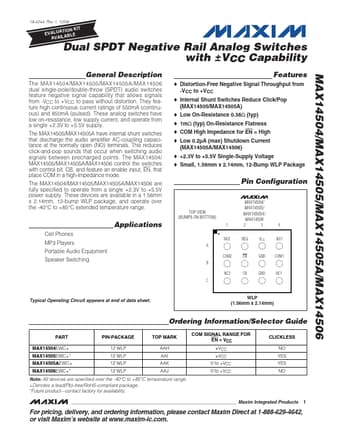

Full PDF Text Transcription

Click to expand full text
MAX14504/MAX14505/MAX14505A/MAX14506 19-4244; Rev 1; 12/08 EVAALVUAAILTAIOBNLEKIT Dual SPDT Negative Rail Analog Switches with ±VCC Capability General Description The MAX14504/MAX14505/MAX14505A/MAX14506 dual single-pole/double-throw (SPDT) audio switches feature negative signal capability that allows signals from -VCC to +VCC to pass without distortion. They feature high continuous current ratings of 550mA (continuous) and 850mA (pulsed). These analog switches have low on-resistance, low supply current, and operate from a single +2.3V to +5.5V supply. The MAX14505/MAX14505A have internal shunt switches that discharge the audio amplifier AC-coupling capacitance at the normally open (NO) terminals.
