MAX14661 - Beyond-the-Rails 16:2 Multiplexer

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX14661
Manufacturer	Maxim Integrated
File Size	1.20 MB
Description	Beyond-the-Rails 16:2 Multiplexer
Datasheet	MAX14661 Datasheet

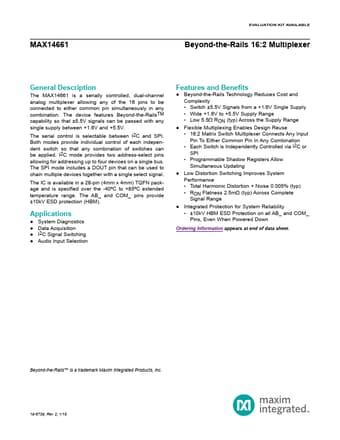

Additional preview pages of the MAX14661 datasheet.

Product details

Description

The MAX14661 is a serially controlled, dual-channel analog multiplexer allowing any of the 16 pins to be connected to either common pin simultaneously in any combination.

Features

Beyond-the-RailsTM capability so that ±5.5V signals can be passed with any single supply between +1.6V and +5.5V. The serial control is selectable between I2C and SPI. Both modes provide individual control of each independent switch so that any combination of switches can be applied. I2C mode provides two address-select pins allowing for addressing up to four devices on a single bus. The SPI mode includes a DOUT pin that can be used to chain multiple devices together with a single select signal.
