MAX14626 - High-Voltage Reverse-Input-Capable

MAX14626 Description

MAX14626 EVALUATION KIT AVAILABLE High-Voltage Reverse-Input-Capable 4 *20mA Current Loop Protector General .
The MAX14626 current loop protector features a currentlimit switch to prevent damage to the sensor devices due to faulty current loop conditions.

MAX14626 Features

* a currentlimit switch to prevent damage to the sensor devices due to faulty current loop conditions. The current-limit switch features a 25Ω (typ) on-resistance and operates from a +2.3V to +36V input voltage range. The accurate current limit is set to 30mA, making the part ideal for protecting the

📥 Download Datasheet

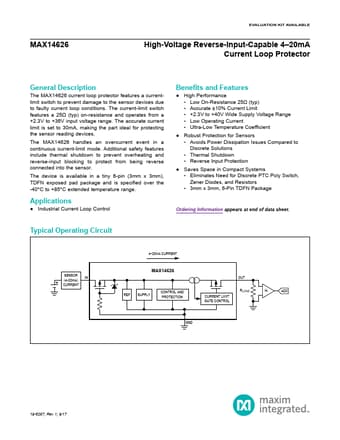

Preview of MAX14626 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX14626
Manufacturer
Maxim
File Size
563.27 KB
Datasheet
MAX14626_Maxim.pdf
Description
High-Voltage Reverse-Input-Capable
