MAX14757 Quad SPST +70V Analog Switches

The MAX14756/MAX14757/MAX14758 are analog switches with a low on-resistance of 10Ω (max) that conduct equally well in both directions. All devices have a rail-to-rail analog-signal range. They operate with a single +10V to +70V supply in unipolar applications or ±35V dual supplies in bipolar applica.

MAX14757 Features

* Single-Supply Operation from +10V to +70V

* Bipolar-Supply Operation Up to ±35V

* On-Resistance of 10Ω (max)

* RON Flatness of 0.004Ω (typ)

* 2.5nA (max) Off-Leakage Currents at +85°C

* Overvoltage/Undervoltage Clamping Through Protection Diode

MAX14756-MaximIntegrated.pdf

This datasheet PDF includes multiple part numbers: MAX14757, MAX14756. Please refer to the document for exact specifications by model.

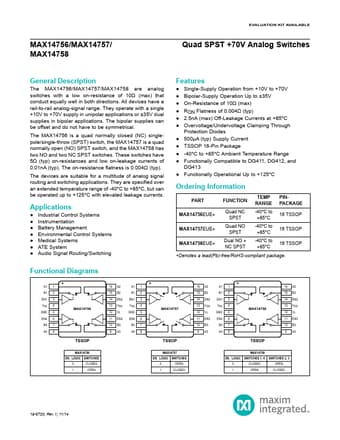

MAX14757 Datasheet Preview Page 2 MAX14757 Datasheet Preview Page 3
