MAX14912

Switch/Push-Pull Driver

MAX14912 Features

* Low Power and Heat Dissipation

* 230mΩ (max) High-Side RON at TA = 125°C

* High-Efficiency 5V/100mA Buck Regulator

* Fast Switching Ideal for High-Speed Control Systems

* 0.1µs (typ.) Propagation Delay (High-Side Mode)

* 0.5µs (typ.) Propagation De

MAX14912 General Description

The MAX14912/MAX14913 have eight 640mA smart highside switches that can also be configured as push-pull drivers for high-speed switching. The propagation delay from input to switching of the high-side/low-side drivers is 1µs (max). Each high-side driver has a low on-resistance of 230mΩ (max) at 500m.

MAX14912 Datasheet (653.84 KB)

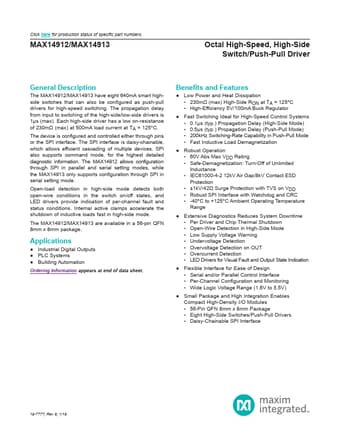

Preview of MAX14912 PDF

Datasheet Details

Part number:

MAX14912

Manufacturer:

Maxim Integrated ↗

File Size:

653.84 KB

Description:

Switch/push-pull driver.
