MAX14915

Compact Industrial Octal High-Side Switch

MAX14915 Features

* Robustness and Smart Diagnostics

* 65V Absolute Maximum Supply Range

* Internal Clamps for Fast Inductive Load Demagnetization

* CRC Error Checking on the SPI Interface

* Watchdog Timer for Diagnostics Checking

* Open-Wire Detection, Both with

MAX14915 General Description

The MAX14915 has eight high-side switches specified to deliver up to 700mA continuous current. The high-side switches have on-resistance of 250mΩ (max) at 125°C ambient temperature. The SPI interface has a built-in chip addressing decoder, allowing communication with multiple MAX14915s utilizing a c.

MAX14915 Datasheet (849.70 KB)

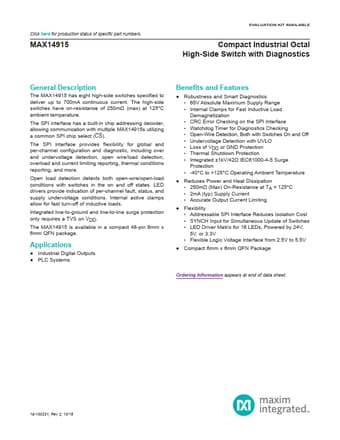

Preview of MAX14915 PDF
