MAX17113 - Multiple-Output Power Supply

Datasheet Summary

Description

The MAX17113 multiple-output power-supply controller generates all the supply rails for thin-film transistor (TFT) liquid-crystal display (LCD) panels in TVs and monitors operating from a regulated 12V input.

Features

  • o Optimized for 10.8V to 13.2V Input Supply o 8V to 16.5V Input Supply Range o Selectable Frequency (450kHz/600kHz) o Current-Mode Step-Up Regulator Built-In 24V, 3.3A, 80mΩ n-Channel MOSFET High-Accuracy Output Voltage (1%) True Shutdown Fast Load-Transient Response High Efficiency 10ms Internal Soft-Start o Current-Mode Step-Down Regulator Built-In 24V, 3A, 100mΩ n-Channel MOSFET Fast Load-Transient Response Adjustable Output Voltage Down to 1.5V Skip Mode at Light Load (EN2 = AGND) High Effic.

📥 Download Datasheet

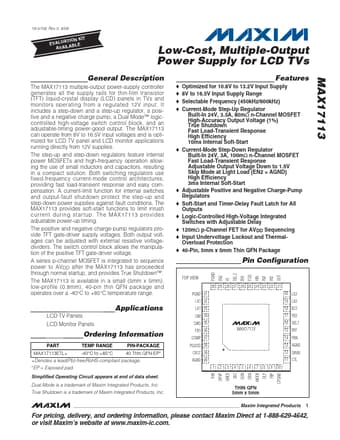

Datasheet preview – MAX17113

Datasheet Details

Part number MAX17113
Manufacturer Maxim Integrated
File Size 1.04 MB
Description Multiple-Output Power Supply
Datasheet download datasheet MAX17113 Datasheet
Additional preview pages of the MAX17113 datasheet.

📁 Similar Datasheet

  • MAX1711 - High-Speed / Digitally Adjusted Step-Down Controllers (Maxim)
  • MAX17112 - DC-DC Converter (Maxim Integrated Products)
  • MAX17116 - Dual-Output DC/DC Power Supply (Maxim)
  • MAX17117 - Internal-Switch Boost Regulator (Maxim Integrated Products)
  • MAX1710 - High-Speed / Digitally Adjusted Step-Down Controllers (Maxim)
  • MAX17101 - Step-Down Controller (Maxim Integrated Products)
  • MAX17105 - 8-String WLED Driver (Maxim)
  • MAX17108 - 10-Channel High-Voltage Scan Driver and VCOM Amplifier (Maxim)
  • MAX1712 - High-Speed / Digitally Adjusted Step-Down Controllers (Maxim)
  • MAX17120 - Triple High-Voltage Scan Driver (Maxim Integrated Products)
Other Datasheets by Maxim Integrated

Full PDF Text Transcription

Click to expand full text
19-4709; Rev 0; 8/09 EVAALVUAAILTAIOBNLEKIT Low-Cost, Multiple-Output Power Supply for LCD TVs MAX17113 General Description The MAX17113 multiple-output power-supply controller generates all the supply rails for thin-film transistor (TFT) liquid-crystal display (LCD) panels in TVs and monitors operating from a regulated 12V input. It includes a step-down and a step-up regulator, a positive and a negative charge pump, a Dual Mode™ logiccontrolled high-voltage switch control block, and an adjustable-timing power-good output. The MAX17113 can operate from 8V to 16.5V input voltages and is optimized for LCD TV panel and LCD monitor applications running directly from 12V supplies.
