MAX1760H - Step-Up DC-DC Converter

Product Overview

Maxim Integrated

📥 Download Datasheet

MAX1760H Step-Up DC-DC Converter by Maxim Integrated - Datasheet Preview — Datasheet preview – MAX1760H

Datasheet Details

Part number	MAX1760H
Manufacturer	Maxim Integrated
File Size	488.46 KB
Description	Step-Up DC-DC Converter
Datasheet	MAX1760H Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX1760H, MAX1760. Please refer to the document for exact specifications by model.

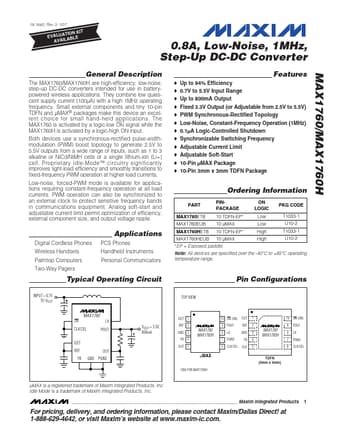

Additional preview pages of the MAX1760H datasheet.

Product details

Description

The MAX1760/MAX1760H are high-efficiency, low-noise, step-up DC-DC converters intended for use in batterypowered wireless applications.

Features

Up to 94% Efficiency.
0.7V to 5.5V Input Range.
Up to 800mA Output.
Fixed 3.3V Output (or Adjustable from 2.5V to 5.5V).
PWM Synchronous-Rectified Topology.
Low-Noise, Constant-Frequency Operation (1MHz).
0.1µA Logic-Controlled Shutdown.
Synchronizable Switching Frequency.
Adjustable Current Limit.
Adjustable Soft-Start.
10-Pin µMAX Package.
10-Pin 3mm x 3mm TDFN Package Ordering Informa.
