MAX17761

Synchronous Step-Down DC-DC Converter

MAX17761 Features

* a peak-current-mode control architecture and can be operated in either the pulse-width modulation (PWM) or pulse-frequency modulation (PFM) control schemes. The MAX17761 is available in a 12-pin (3mm x 3mm) TDFN package. Simulation models are available. Applications

* Industrial Control Pow

MAX17761 General Description

The MAX17761, high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated MOSFETs operates over a 4.5V to 76V input. The converter can deliver up to 1A current. Output voltage is programmable from 0.8V up to 90% of VIN. The feedback voltage regulation accuracy over -40°C to .

MAX17761 Datasheet (838.67 KB)

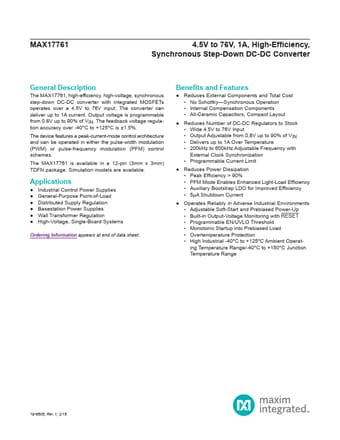

Preview of MAX17761 PDF

Datasheet Details

Part number:

MAX17761

Manufacturer:

Maxim Integrated ↗

File Size:

838.67 KB

Description:

Synchronous step-down dc-dc converter.
