MAX1776 24V / 600mA Internal Switch / 100% Duty Cycle / Step-Down Converter

The MAX1776 high-efficiency step-down converter provides an adjustable output voltage from 1.25V to VIN from supply voltages as high as 24V. An internal current-limited 0.4Ω MOSFET delivers load currents up to 600mA. Operation to 100% duty cycle minimizes dropout voltage (240mV at 600mA). The MAX177.

MAX1776 Features

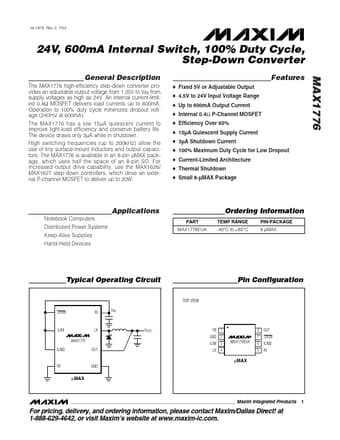

* MAX1776 Applications Notebook Computers Distributed Power Systems Keep-Alive Supplies Hand-Held Devices PART MAX1776EUA Ordering Information TEMP RANGE -40°C to +85°C PIN-PACKAGE 8 µMAX Typical Operating Circuit TOP VIEW SHDN IN VIN Pin Configuration ILIM MAX1776 ILIM2 LX VOUT FB GND ILIM
