MAX19692 - Multi-Nyquist DAC

Maxim Integrated

📥 Download Datasheet

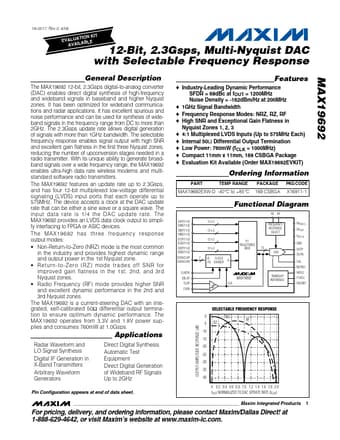

MAX19692 Datasheet Preview — Preview of MAX19692 PDF

Datasheet Details

Part number: MAX19692
Manufacturer: Maxim Integrated ↗
File Size: 308.65 KB
Datasheet: MAX19692-MaximIntegrated.pdf
Description: Multi-Nyquist DAC

MAX19692 Product details

Description

The MAX19692 12-bit, 2.3Gsps digital-to-analog converter (DAC) enables direct digital synthesis of high-frequency and wideband signals in baseband and higher Nyquist zones.

Features

an update rate up to 2.3Gsps, and has four 12-bit multiplexed low-voltage differential signaling (LVDS) input ports that each operate up to 575MHz. The device accepts a clock at the DAC update rate that can be either a sine wave or a square wave. The input data rate is 1/4 the DAC update rate. The MAX19692 provides an LVDS data clock output to simplify interfacing to FPGA or ASIC devices. The MAX19692 has three frequency response output modes:.
Non-Return-to-Zero (NRZ) mode is the most.
