MAX19005 - 200Mbps ATE Drivers/Comparators

Datasheet Summary

Description

The MAX19005 four-channel, ultra-low-power, pinelectronics IC includes a two-level pin driver, a window comparator, a passive load, and force-and-sense Kelvin-switched parametric measurement unit (PMU) connections for each channel.

Features

  • a -1V to +5.2V voltage range, includes high-impedance modes, and is highly linear even at low voltage swings. The window comparator features 240MHz equivalent input bandwidth and programmable output voltage levels. The passive load provides pullup and pulldown voltages to the device-under-test (DUT). Low leakage and high impedance are operational configurations that are programmed through a 3-wire, low-voltage, CMOS-compatible serial interface. Highspeed PMU switching is realized through dedicat.

📥 Download Datasheet

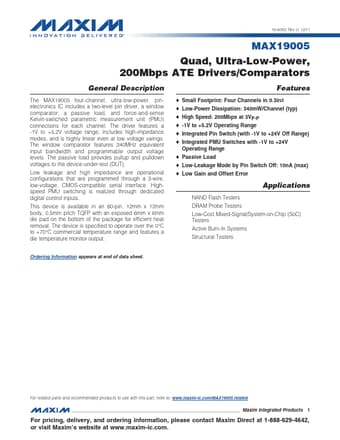

Datasheet preview – MAX19005

Datasheet Details

Part number MAX19005
Manufacturer Maxim Integrated
File Size 1.87 MB
Description 200Mbps ATE Drivers/Comparators
Datasheet download datasheet MAX19005 Datasheet
Additional preview pages of the MAX19005 datasheet.

📁 Similar Datasheet

  • MAX190 - Low-Power / 12-Bit Sampling ADCs (Maxim)
  • MAX1901 - Low-Noise Power-Supply Controllers (Maxim)
  • MAX1902 - Low-Noise Power-Supply Controllers (Maxim)
  • MAX1904 - Low-Noise Power-Supply Controllers (Maxim)
  • MAX1907A - Quick-PWM Master Controllers (Maxim Integrated Products)
  • MAX1908 - Low-Cost Multichemistry Battery Chargers (Maxim Integrated Products)
  • MAX1909 - Multichemistry Battery Charger (Maxim Integrated Products)
  • MAX191 - 12-Bit Sampling ADC (Maxim)
  • MAX1910 - 1.5x/2x High-Efficiency White LED Charge Pumps (Maxim)
  • MAX1912 - 1.5x/2x High-Efficiency White LED Charge Pumps (Maxim)
Other Datasheets by Maxim Integrated
  • MAX1920 - 400mA Step-Down DC-DC Converters
  • MAX1921 - 400mA Step-Down DC-DC Converters
  • MAX1928 - PWM Step-Down DC-DC Converters
  • MAX19516 - 100Msps ADC
  • MAX1954A - Current-Mode PWM Buck Controller
  • MAX1963A - 300mA LDO Regulators
  • MAX1967 - Low-Cost Voltage-Mode PWM Step-Down Controllers
  • MAX19692 - Multi-Nyquist DAC

Full PDF Text Transcription

Click to expand full text
19-6092; Rev 0; 12/11 MAX19005 Quad, Ultra-Low-Power, 200Mbps ATE Drivers/Comparators General Description The MAX19005 four-channel, ultra-low-power, pinelectronics IC includes a two-level pin driver, a window comparator, a passive load, and force-and-sense Kelvin-switched parametric measurement unit (PMU) connections for each channel. The driver features a -1V to +5.2V voltage range, includes high-impedance modes, and is highly linear even at low voltage swings. The window comparator features 240MHz equivalent input bandwidth and programmable output voltage levels. The passive load provides pullup and pulldown voltages to the device-under-test (DUT).
