MAX191 - 12-Bit Sampling ADC

MAX191 Description

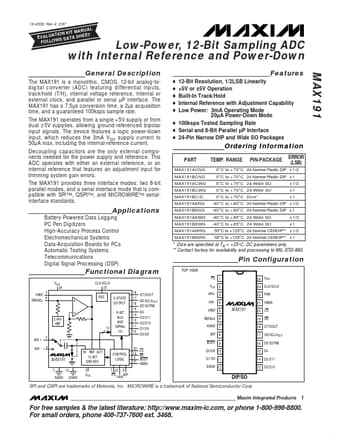

19-4506; Rev 4; 2/97 ANUAL N KIT M EET IO T A U EVAL TA SH WS DA FOLLO Low-Power, 12-Bit Sampling ADC with Internal Reference and Power-Down General.
____________________________Features o o o o o 12-Bit Resolution, 1/2LSB Linearity +5V or ±5V Operation Built-In Track/Hold Internal Reference with Ad.

MAX191 Features

* o o o o o 12-Bit Resolution, 1/2LSB Linearity +5V or ±5V Operation Built-In Track/Hold Internal Reference with Adjustment Capability Low Power: 3mA Operating Mode 20µA Power-Down Mode o 100ksps Tested Sampling Rate o Serial and 8-Bit Parallel µP Interface o 24-Pin Narrow DIP and Wide SO Packages MA

MAX191 Applications

* Battery-Powered Data Logging PC Pen Digitizers High-Accuracy Process Control Electromechanical Systems Data-Acquisition Boards for PCs Automatic Testing Systems Telecommunications Digital Signal Processing (DSP)
* Dice are specified at TA = +25°C, DC parameters only.
* Contact factory
