MAX22192 Datasheet - Maxim Integrated

MAX22192 Octal Industrial Digital Input

The MAX22192 is an IEC 61131-2 compliant industrial digital input device with integrated digital isolation. The MAX22192 translates eight, 24V current-sinking, industrial inputs to an isolated serialized SPI-compatible output that interfaces with 1.71V to 5.5V logic voltage. A currentsetting resisto.

MAX22192-MaximIntegrated.pdf

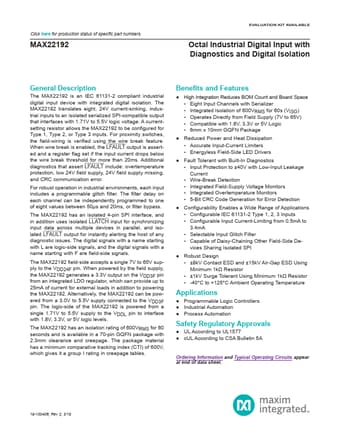

Preview of MAX22192 PDF
MAX22192 Datasheet Preview Page 2 MAX22192 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX22192

Manufacturer:

Maxim Integrated ↗

File Size:

874.16 KB

Description:

Octal industrial digital input.
