MAX2659 Datasheet - Maxim Integrated

MAX2659 GPS/GNSS Low-Noise Amplifier

The MAX2659 high-gain, low-noise amplifier (LNA) is designed for GPS, Galileo, and GLONASS applications. Designed in Maxim’s advanced SiGe process, the device achieves a 20.5dB gain and an ultra-low-noise figure of 0.8dB while maximizing the input-referred 1dB compression point and the 3rd-order in.

MAX2659 Features

* o High-Power Gain: 20.5dB o Ultra-Low-Noise Figure: 0.8dB o Integrated 50Ω Output Matching Circuit o Low Supply Current: 4.1mA o Wide Supply Voltage Range: 1.6V to 3.6V o Low Bill of Materials o Small Footprint: 1.5mm x 1.0mm o Thin Profile: 0.75mm o Lead-Free and RoHS-Compliant Package Ordering In

MAX2659-MaximIntegrated.pdf

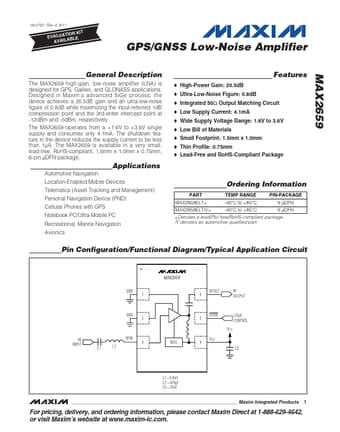

Preview of MAX2659 PDF
MAX2659 Datasheet Preview Page 2 MAX2659 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX2659

Manufacturer:

Maxim Integrated ↗

File Size:

120.97 KB

Description:

Gps/gnss low-noise amplifier.
