MAX2650 - +5V Low-Noise Amplifier

MAX2650 Description

MAX2650 19-1135; Rev 1; 8/03 EVAALVUAAILTAIOBNLEKIT DC-to-Microwave, +5V Low-Noise Amplifier _______________General .
The MAX2650 is a low-noise amplifier for use from DC to microwave frequencies.

MAX2650 Features

* o Internally Biased o High Gain: 18.3dB at 900MHz o 3.9dB Noise Figure o Single +4.5V to +5.5V Operation o -1dBm Output 1dB Compression Power o Low-Cost Silicon Bipolar Design o Ultra-Small SOT143 Package ______________Ordering Information PART MAX2650EUS-T TEMP RANGE -40°C to +85°C PIN-PACKAGE

MAX2650 Applications

* The device is internally biased, eliminating the need for external bias resistors or inductors. In a typical application, the only external components needed are input and output blocking capacitors and a VCC bypass capacitor. The MAX2650 comes in a 4-pin SOT143 package, requiring minimal board spa

📥 Download Datasheet

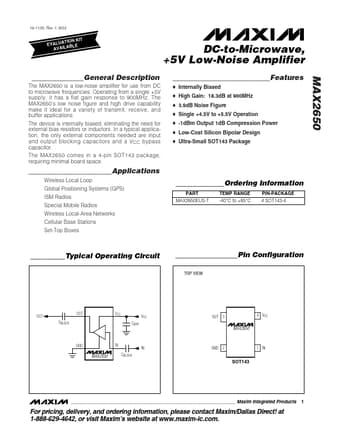

Preview of MAX2650 PDF
