MAX2601 - 1W RF Power Transistors

Product Overview

Maxim

Datasheet Details

Part number	MAX2601
Manufacturer	Maxim
File Size	79.82 KB
Description	1W RF Power Transistors
Datasheet	MAX2601 Datasheet

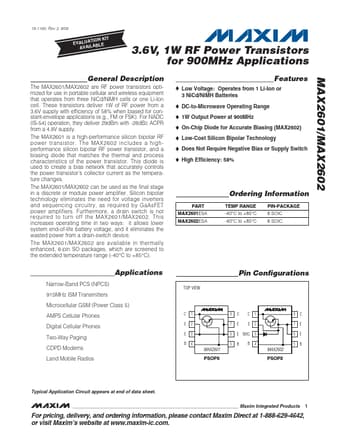

Additional preview pages of the MAX2601 datasheet.

Product details

Description

The MAX2601/MAX2602 are RF power transistors optimized for use in portable cellular and wireless equipment that operates from three NiCd/NiMH cells or one Li-Ion cell.

Features

Low Voltage: Operates from 1 Li-Ion or 3 NiCd/NiMH Batteries.
DC-to-Microwave Operating Range.
1W Output Power at 900MHz.
On-Chip Diode for Accurate Biasing (MAX2602).
Low-Cost Silicon Bipolar Technology.
Does Not Require Negative Bias or Supply Switch.
High Efficiency: 58% PART MAX2601ESA MAX2602ESA Ordering Information TEMP RANGE -40°C to +85°C -40°C to +85°C PIN-.
