MAX2602

1W RF Power Transistors

MAX2602 Features

* Low Voltage: Operates from 1 Li-Ion or 3 NiCd/NiMH Batteries

* DC-to-Microwave Operating Range

* 1W Output Power at 900MHz

* On-Chip Diode for Accurate Biasing (MAX2602)

* Low-Cost Silicon Bipolar Technology

* Does Not Require Negative Bias or Supply

MAX2602 General Description

The MAX2601/MAX2602 are RF power transistors optimized for use in portable cellular and wireless equipment that operates from three NiCd/NiMH cells or one Li-Ion cell. These transistors deliver 1W of RF power from a 3.6V supply with efficiency of 58% when biased for constant-envelope applications (e.

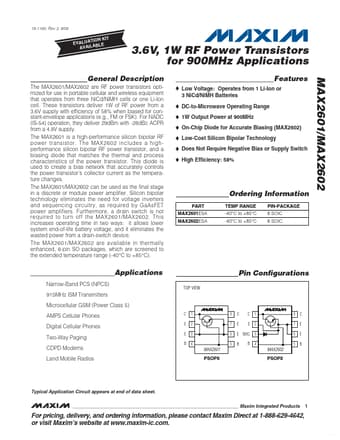

MAX2602 Datasheet (103.51 KB)

Preview of MAX2602 PDF

Datasheet Details

Part number:

MAX2602

Manufacturer:

Maxim

File Size:

103.51 KB

Description:

1w rf power transistors.
