MAX271, MAX270 - Dual 2nd-Order Continuous Lowpass Filter

MAX271 Description

MAX270/MAX271 Digitally-Programmed, Dual 2nd-Order Continuous Lowpass Filter General .
The MAX270/MAX271 are digitally-programmed, dual second-order continuous-time lowpass filters.

MAX271 Features

* S Continuous-Time Filtering - No Clock Required S Dual 2nd-Order Lowpass Filters S Sections Ind

MAX271 Applications

* and can be cascaded for higher-order responses. The two filter sections are independently programmable by either microprocessor (FP) control or pin strapping. Cutoff frequencies in the 1kHz to 25kHz range can be selected. The MAX270 has an on-board, uncommitted op amp, while the MAX271 has an intern

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX271, MAX270. Please refer to the document for exact specifications by model.

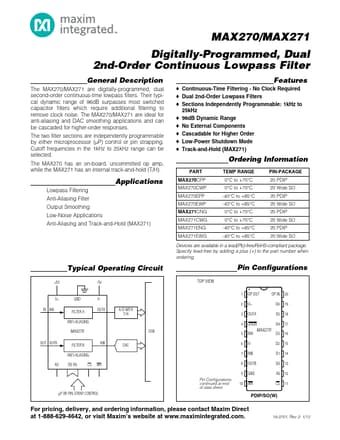

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX271, MAX270
Manufacturer
Maxim Integrated ↗
File Size
761.68 KB
Datasheet
MAX270-MaximIntegrated.pdf
Description
Dual 2nd-Order Continuous Lowpass Filter
Note
This datasheet PDF includes multiple part numbers: MAX271, MAX270.
Please refer to the document for exact specifications by model.
