MAX2700, MAX, 1.8GHz to 2.5GHz Direct Downconversion Receivers

19-1667; Rev 0; 4/00 www.DataSheet4U.com 1.8GHz to 2.5GHz Direct Downconversion Receivers General .
Features o Input Frequency Range 1.

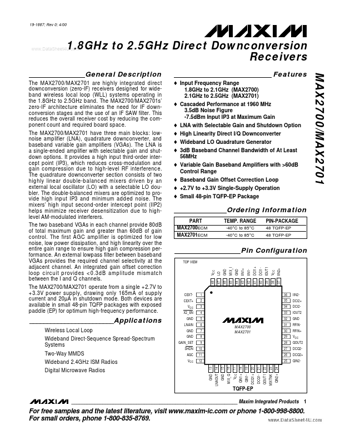

datasheet Preview Page 1 from Datasheet4u.com

MAX-2700.pdf

MAX2700 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX2700, MAX. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX2700, MAX

Manufacturer:

Maxim

File Size:

382.25 KB

Description:

1.8GHz to 2.5GHz Direct Downconversion Receivers

Note:

This datasheet PDF includes multiple part numbers: MAX2700, MAX.
Please refer to the document for exact specifications by model.

Features

* o Input Frequency Range 1.8GHz to 2.1GHz (MAX2700) 2.1GHz to 2.5GHz (MAX2701) o Cascaded Performance at 1960 MHz 3.5dB Noise Figure -7.5dBm Input IP3 at Maximum Gain o LNA with Selectable Gain and Shutdown Option o High Linearity Direct I/Q Downconverter o Wideband LO Quadrature Generator o 3dB Base

Applications

* Wireless Local Loop Wideband Direct-Sequence Spread-Spectrum Systems Two-Way MMDS Wideband 2.4GHz ISM Radios Digital Microwave Radios MAX2700 MAX2701 ________________________________________________________________ Maxim Integrated Products GND LNAOUT GND MIX_Q VCC QIN1+ QIN1DCQ1+ DCQ1QOUT1 MIXTN
