MAX31825

Temperature Sensor

Maxim Integrated

MAX31825 Features

* 1-Wire Interface Requires Only One Port Pin for Communication

* Unique 64-bit Serial Code Stored in an On-Board ROM

* External Resistor Selects Address for Location Identification

* Can Be Powered From Data Line

* Power Supply Range is 1.6V to 3.6V (External Power), 2.3V to 3.6

MAX31825 General Description

The MAX31825 temperature sensor provides 8-bit to 12-bit Celsius temperature measurements with better than ±1°C accuracy from 0°C to +70°C and ±1.75°C from -45°C to +145°C. The sensor communicates over a 1-Wire® bus that, by definition, requires only one data line (and ground) for communication with.

MAX31825 Datasheet (395.76 KB)

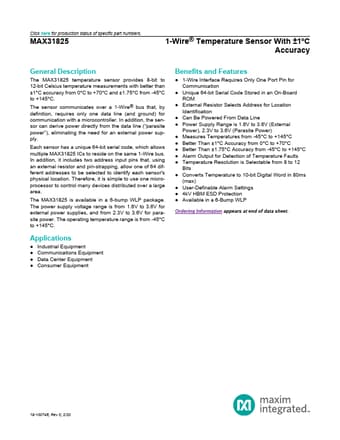

MAX31825 Datasheet Preview — Preview of MAX31825 PDF

Datasheet Details

Part number:

MAX31825

Manufacturer:

Maxim Integrated ↗

File Size:

395.76 KB

Description:

Temperature sensor.
